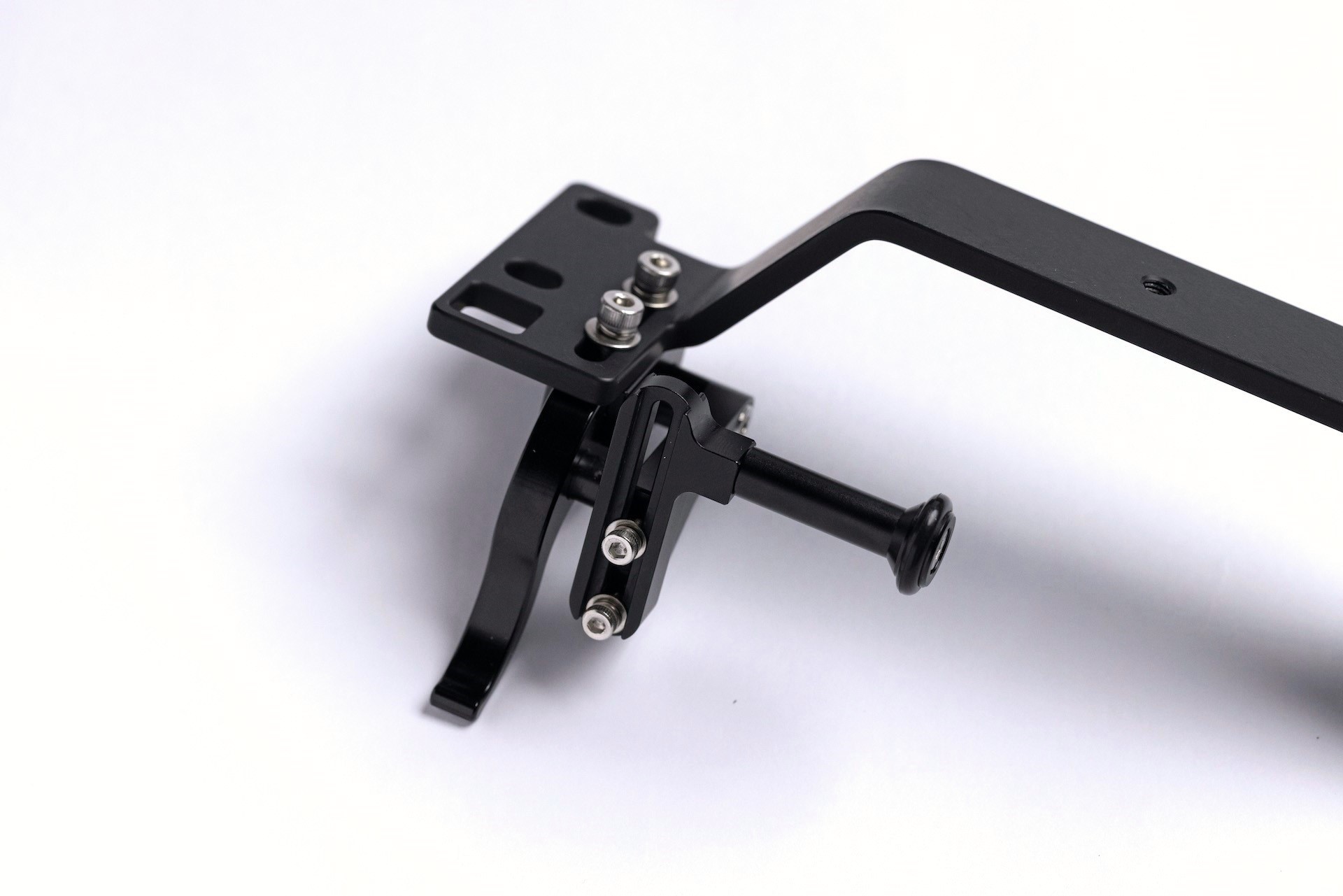

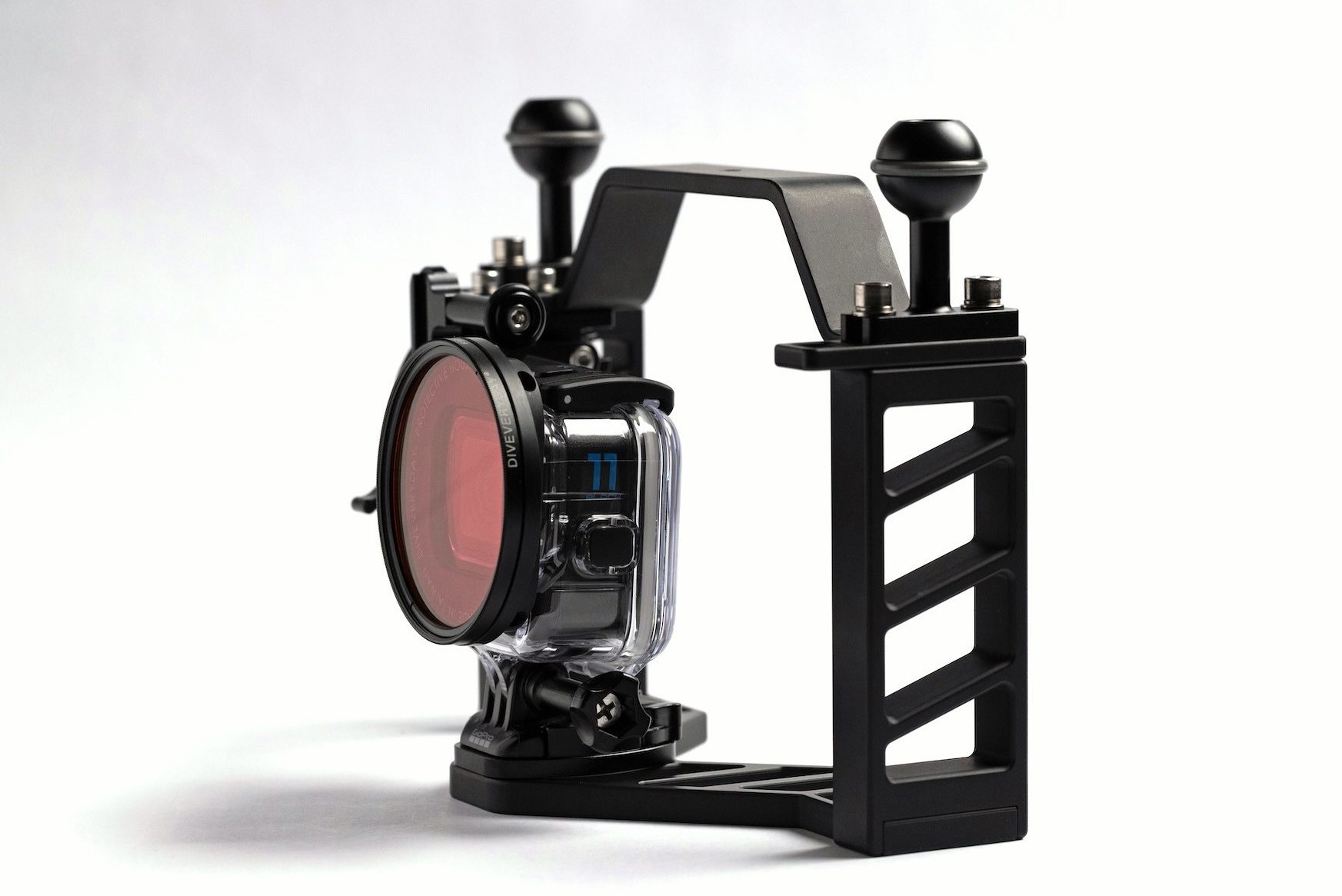

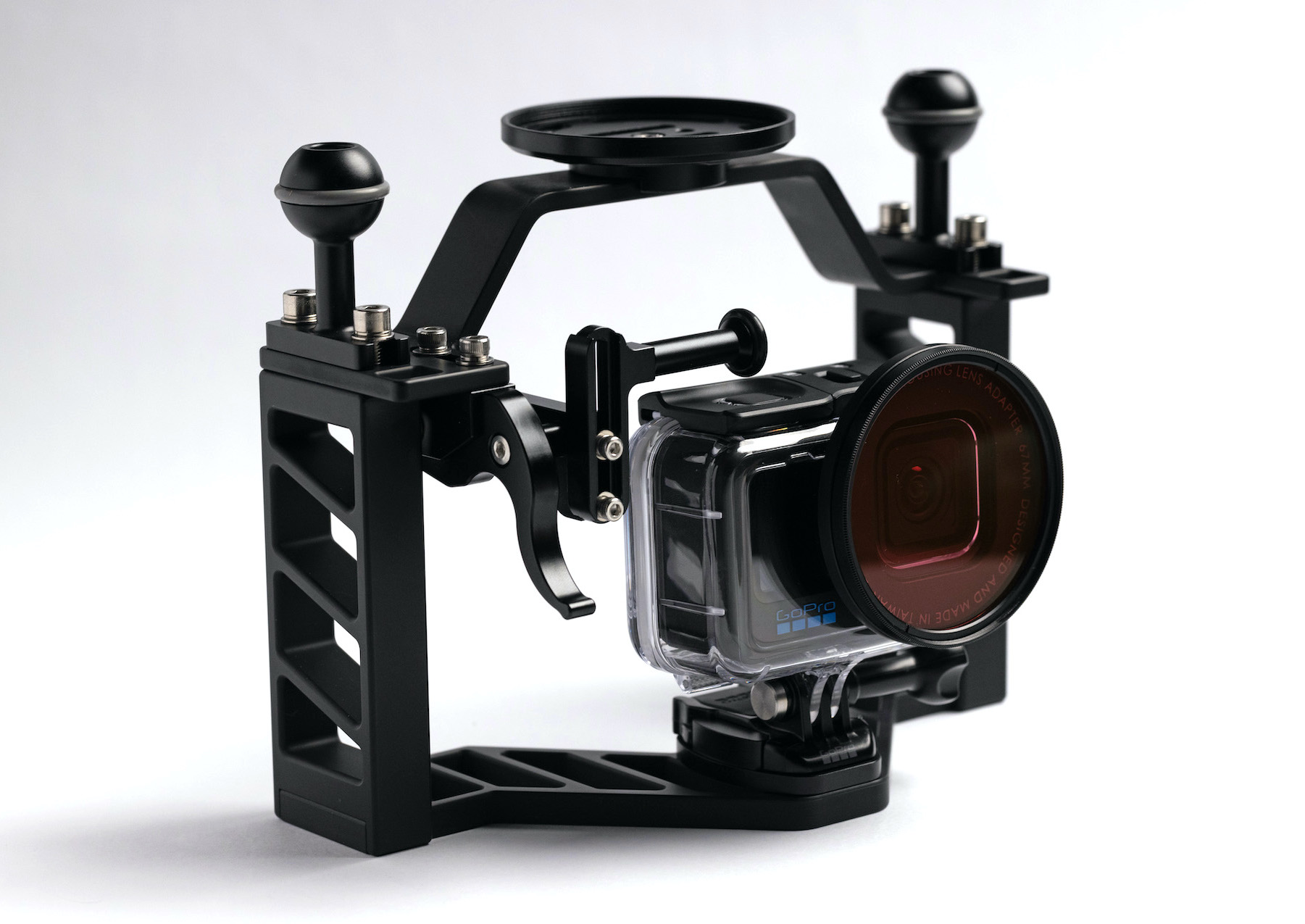

The Handle Bar Kit consists of a custom handle bar and an adjustable shutter trigger mechanism, compatible with DIVEVERYDAY Camera Tray Kit®.
The structure of the handle bar includes reserved holes for lanyards or clasps attachment, and a center M5 screw hole for extend capability of installing other accessories. It is made of aluminum alloy in order to be light weight and with high strength, hard anodized surface treatment makes it more scratch-resistant.

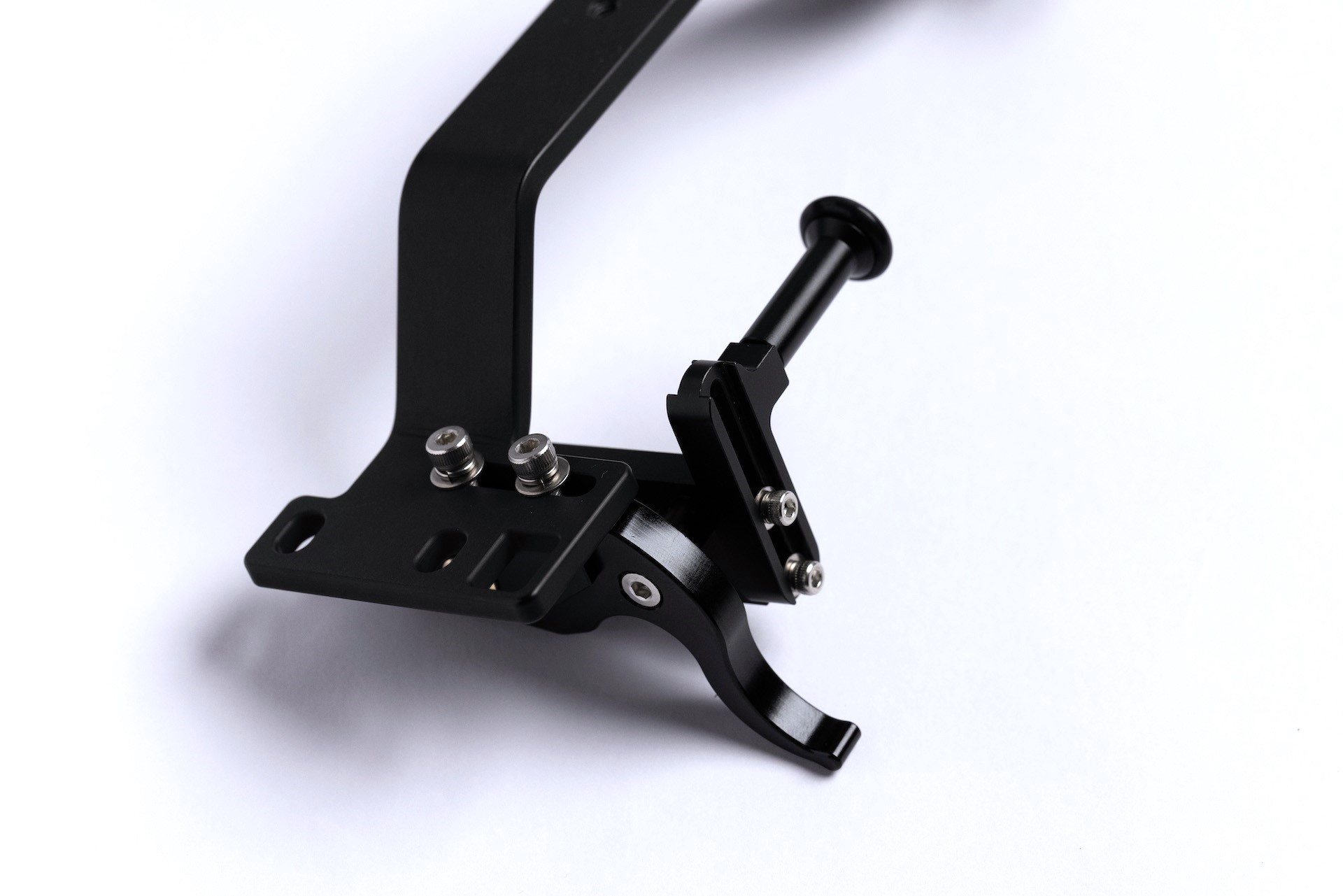

The adjustable shutter trigger mechanism is integrated with the handle bar, when pull the trigger with index finger, it will press the camera shutter button simultaneously, which provides most effective usability.
SPECIFICATION
- Measurement：Length 57mm / Width 200mm / Height 39mm (Custom Handle Bar)
- Weight：152g (Trigger mechanism included)
- Material：Aluminum alloy
- Process：CNC shaping / Machine folding / CNC cutting / Hard anodized treatment
- Made in Taiwan
MAINTAINANCE
- Always rinse thoroughly with clean fresh water after each use to avoid any residual seawater, salt or dirt.
- Pay special attention to the screws at all connections, otherwise residual sea water or dirt may still cause rust or corrosion.
- After rinsing, wipe off water droplets and place the kit in a well-ventilated area.
- For long-term storage, store the kit in a cool and dry place for preservation.
PACKAGE CONTENTS
- Custom handle bar*1
- Trigger unit*1
- M5X20L Allen screw and washer*4
- 4mm Allen key*1
- 3mm Allen key*1
- 2.5mm Allen key*1
- User manual
